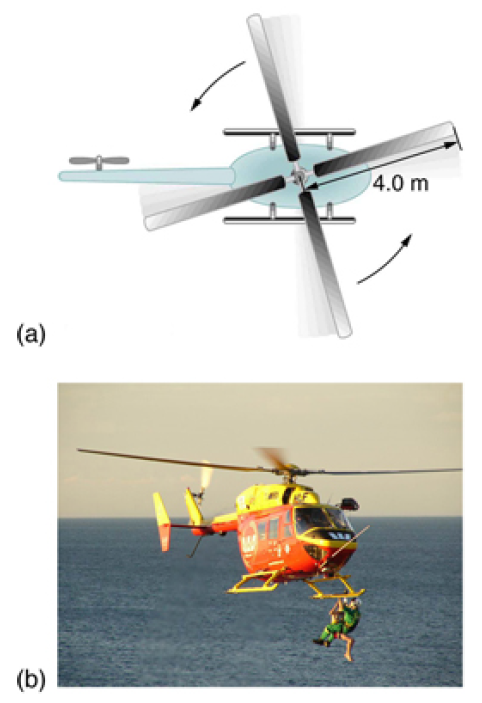

The first image shows how helicopters store large amounts of rotational kinetic energy in their blades. This energy must be put into the blades before takeoff and maintained until the end of the flight. The engines do not have enough power to simultaneously provide lift and put significant rotational energy into the blades.

The second image shows a helicopter from the Auckland Westpac Rescue Helicopter Service. Over 50,000 lives have been saved since its operations beginning in 1973. Here, a water rescue operation is shown. (credit: 111 Emergency, Flickr)

Strategy

Rotational and translational kinetic energies can be calculated from their definitions. The last part of the problem relates to the idea that energy can change form, in this case from rotational kinetic energy to gravitational potential energy.

Solution for **(a)**

We must convert the angular velocity to radians per second and calculate the moment of inertia before we can find **E _{r}** . The angular velocity

**ω**for

**1 r.p.m**is

and for **300 r.p.m**

The moment of inertia of one blade will be that of a thin rod rotated about its end.

The total I is four times this moment of inertia, because there are four blades. Thus,

and so The rotational kinetic energy is

Solution for **(b)**

Translational kinetic energy is defined as

To compare kinetic energies, we take the ratio of translational kinetic energy to rotational kinetic energy. This ratio is

Solution for **(c)**

At the maximum height, all rotational kinetic energy will have been converted to gravitational energy. To find this height, we equate those two energies:

Discussion

The ratio of translational energy to rotational kinetic energy is only **0.380**. This ratio tells us that most of the kinetic energy of the helicopter is in its spinning blades—something you probably would not suspect. The **53.7 m** height to which the helicopter could be raised with the rotational kinetic energy is also impressive, again emphasizing the amount of rotational kinetic energy in the blades.

Reference : OpenStax College,College Physics. OpenStax College. 21 June 2012.

http://openstaxcollege.org/textbooks/college-physics

Creative Commons License : http://creativecommons.org/licenses/by/3.0/

Rotating unbalance is the uneven distribution of mass around an axis of rotation. A rotating mass, or rotor, is said to be out of balance when its center ... more

Rotating unbalance is the uneven distribution of mass around an axis of rotation. A rotating mass, or rotor, is said to be out of balance when its center ... more

In turbomachinery, the slip factor is a measure of the fluid slip in the impeller of a compressor or a turbine, mostly a centrifugal machine. Fluid slip is ... more

An approximate formula given by Balje for radial-tipped (β2=900) blade impellers

... more

The tip-speed ratio, λ, or TSR for wind turbines is the ratio between the tangential speed of the tip of a blade and the actual ... more

A flywheel is a rotating mechanical device that is used to store rotational energy. Flywheel energy storage works by accelerating a rotor to a very high ... more

...can't find what you're looking for?

Create a new formula
A typical small rescue helicopter, like the one in the Figure below, has four blades, each is

4.00 mlong and has a mass of50.0 kg. The blades can be approximated as thin rods that rotate about one end of an axis perpendicular to their length. The helicopter has a total loaded mass of1000 kg.(a)Calculate the rotational kinetic energy in the blades when they rotate at300 rpm.(b)Calculate the translational kinetic energy of the helicopter when it flies at20.0 m/s, and compare it with the rotational energy in the blades.(c)To what height could the helicopter be raised if all of the rotational kinetic energy could be used to lift it?
